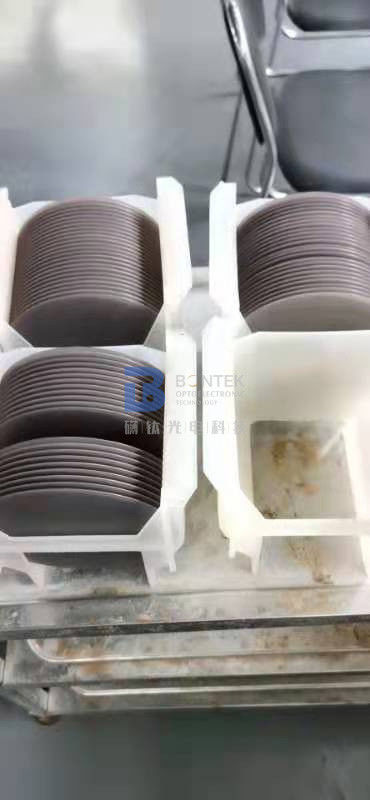

Customized LiTaO3 Wafer with Exceptional Ferroelectric and Electro Optic Properties for in Telecommunications and Sensors
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | CQT |
| 인증: | ISO:9001 |
| 모델 번호: | 탄탈산리튬(LiTaO3) |
결제 및 배송 조건:
| 최소 주문 수량: | 10개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카세트 / 병이 PE 거품과 통을 심었습니다. |
| 배달 시간: | 1-4 주 |
| 지불 조건: | 티/티 |
| 공급 능력: | 100000 조각/월 |
|
상세 정보 |
|||
| 재료: | 탄탈산리튬(LiTaO3) 결정 | 크기: | 3'', 4'', 6'' |
|---|---|---|---|
| 절단 각도: | Y, Z, 28Y, 36Y, 42Y 등 | 두께: | 0.25 밀리미터, 0.35 밀리미터, 0.5 밀리미터, 1 밀리미터 |
| 표면: | DSP SSP | 어플리케이션: | 5G, SAW 디바이스, 광학 |
| 강조하다: | customized LiTaO3 wafer for telecommunications,ferroelectric piezoelectric wafer for sensors,electro-optic LiTaO3 wafer with warranty |
||
제품 설명
Customized LiTaO3 Wafer with Exceptional Ferroelectric and Electro Optic Properties for in Telecommunications and Sensors
Experience unmatched precision in frequency control and optical modulation with our premium lithium tantalate (LiTaO₃) wafers. Renowned for superior piezoelectric, electro-optic, and acousto-optic properties compared to standard lithium niobate (LiNbO₃), LiTaO₃ is the material of choice for high-stability oscillators, surface acoustic wave (SAW) filters, and nonlinear optical devices.
Our wafers, available in X-cut, Y-cut, and rotated Y-cuts, feature a higher Curie temperature (>600°C) and lower dielectric losses, ensuring reliable performance under extreme thermal and electrical conditions. With excellent electro-optic coefficients (r₃₃ ≈ 30 pm/V) and acoustic velocity (>4,200 m/s), they excel in 5G RF filters, optical phase modulators, and frequency doubling (SHG) applications.
Precision-manufactured with ultra-low surface roughness (<0.5 nm RMS) and customizable dimensions, each wafer undergoes rigorous quality testing to meet stringent industry standards.
Elevate your technology with our LiTaO₃ wafers—where stability meets innovation. Contact us today to discuss your specifications and unlock the full potential of this extraordinary material.
Precision Engineered. Performance Optimized.
Material Characteristics
| Material |
3" 4" 6" 8" LN wafer Saw/Optical grade |
3" 4" 6" LT wafer Saw/Optical grade |
| Orientation | X/ Z/ Y41°/ Y64°/ Y128°/ YZ/ YX or Customized | X112°/ Y28°/ Y36°/ Y42°/ YZ or Customized |
| Curie Temp | 1142°C±3°C | 605°C±3°C |
| Doped with | Zn, MgO, single or double doped available | Fe doped (Yellow Black) |
| Single Domain | Completed Polarization (White) / Reducted (Black) | |
Processing Capacity
| Surface finish | Single or Double side polish (DSL/SSP/DSP available) | |
| Thickness | 0.18/0.25/0.35/0.50/1.00 + mm | 0.25/0.35/0.50/1.00+mm |
| TTV | < 1~5µm | |
| BOW | ± (25µm ~40um ) | |
| Warp | <= 25µm | |
| LTV (5mmx5mm) | <1.5 um | |
| PLTV(<0.5um) | ≥98% (5mm*5mm) with 2mm edge excluded | |
| Edge | Compl't with SEMI M1.2@with GC800# .regular at C typed | |
| Orientation flats | Available, per request | |
| Polished side Ra | Roughness Ra<=5A | |
| Back Side Criteria | Roughness Ra:0.5-1.0µm GC#1000 | |
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 | |
| Cracks, saw marks, stains |
None |
|
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
